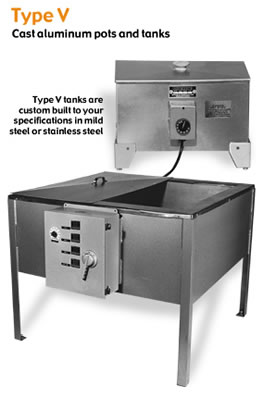

Square/Rectangular Cast Aluminum Melting Tanks - Type V


Specifications

  • Cast aluminum crucible
  • Cast aluminum leveling legs
  • 20 gauge stainless steel shell, #4 finish
  • Multiple-circuit heating element for uniform heat
  • 2" fiberglass insulation
  • Stainless Steel cover with heat resistant knob
  • Adjustable temperature control
  • 6', 3 prong electrical cord



Options
  • Specify 110V or 220V power operation
  • Digital temperature control
  • Custom built tanks to meet your needs
  • Variable temperature ranges. Specify ranges:60° to 250° F, 100° to 320° F, 40° to 410° F*,  60° to 450° F, 150° to 600° F* (* Electronic temperature control, please add $50.00)

Square Cast Aluminum Melting Pots & Tanks

Order Now

CLICK HERE FOR CURRENT PRICING

VIEW OR DOWNLOAD OPERATING INSTRUCTIONS

 Inside Dimensions

Capacity I.D.
(Length x width x depth)
Wattage
Type V
1 Pint
1 Pint
1 Quart
1/2 Gallon
0.7 Gallon
1 Gallon
1.38 Gallon
1 1/2 Gallon
1 3/4 Gallon
2 Gallon
2 1/2 Gallon
3.4 Gallon
5" x 2 1/2" x 2"
4" x 4" x 2"
8" x 4" x 2"
6" x 6" x 2"
10" x 4" x 4"
12" x 6" x 3"
20" x 4" x 4"
12" x 6" x 5"
12" x 7" x 5"
11" x 5" x 9"
24" x 12" x 2"
10" x 8" x 10"
240
240
360
480
540
840
1080
960
1000
1000
1000
1200




WE ACCEPT VISA, MASTERCARD, AND AMERICAN EXPRESS CREDIT CARDS,
CASHIERS CHECKS AND MONEY ORDERS; PREPAYMENT IS REQUIRED. A 3.5% TRANSACTION FEE IS CHARGED ON ALL CREDIT CARD PURCHASES. ALL OF OUR PRODUCTS ARE PROUDLY MADE IN THE USA.

If you have questions, or want to place an order,
please call us TOLL FREE:
1-800-359-2384

OR
Send email to info@meltingtanks.com
