Water Jacketed Melters - Type WJ40

ALL STAINLESS STEEL WATER JACKETED WAX MELTER is ideal as a stand-alone melting tank or as a batch tank. This thermostatically controlled wax melter provides even heating with no hot spots. It's ideal for melting waxes, *gels, and soap products that require melting/pouring temperatures below 200 degrees Fahrenheit. Replacement elements are available for on-site repair. Manufactured on-site in our factory, Rite-Hete Water Jacketed Melters are constructed with superior quality. These heavy-duty melters will provide years of performance for your production needs. Add our EZ Dispensing System for production filling. Order your system today!

High temperature Gels may require higher melting temperatures over 200 degrees Fahrenheit. See "VRS Direct Heat Melters" section for higher temperature melting.

Water jacketed melters are ideal for melting

  • Wax
  • Soy
  • Vegetable
  • Palm Wax
  • Soap
  • Gels
  • Honey
  • Materials with melting points below 200 degrees Fahrenheit

Specifications

  • Type 304 stainless steel crucible and outer jacket, all fabricated in 18 gauge stainless featuring a conical bottom for complete draining.
  • Adjustable temperature, 60-200f
  • 1800 watt immersion heater / 110 volt
  • 6', 3 prong electrical cord
  • 1” ball valve
  • Sight glass thermometer
  • Aluminum cover with heat-resistant knob
  • 14" diameter x 16" deep I.D.
  • Shipping weight: 109 lbs.
  • 1 year warranty

VIEW OR DOWNLOAD OPERATING INSTRUCTIONS

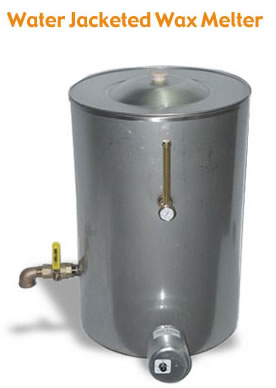

Water Jacketed Wax Melter

Water Jacketed
Wax Melter
40 Quarts/65 lbs wax



   2024 pricing is $1300.00+ s/h


WE ACCEPT VISA, MASTERCARD, AND
AMERICAN EXPRESS CREDIT CARDS,
CASHIERS CHECKS AND MONEY ORDERS; PREPAYMENT IS REQUIRED. A 3.5% TRANSACTION FEE WILL BE CHARGED ON ALL CREDIT CARD PURCHASES. ALL OF OUR PRODUCTS ARE PROUDLY MADE IN THE USA.

If you have questions, or want to place an order, please call us TOLL FREE:
1-800-359-2384

OR
Send email to info@meltingtanks.com
