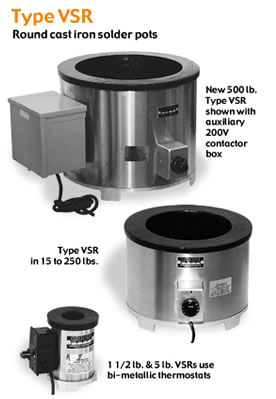

Round - Type VSR


Specifications

  • Cast iron crucible
  • 20 gauge stainless steel shell
  • 2" high density refractory insulation
  • Multiple-circuit blanket heater for uniform heat
  • Adjustable temperature control (150° to 900° F)
  • 6', 3 prong power cord



Options
  • Specify 110V or 220V power operation
  • Remote digital controls for precise temperature control. Mil. Spec 2000 +/- 2°F



CLICK HERE FOR CURRENT PRICING

VIEW OR DOWNLOAD OPERATING  INSTRUCTIONS

Inside Dimensions

Capacity I.D.
(Dia. x depth)
Wattage
Type VSR
1 1/2 lbs.*
5 lbs.*
15 lbs.
30 lbs.
60 lbs.
120 lbs.
250 lbs.
500 lbs.
2 1/4" x 1 1/2"
3 1/4" x 2 1/2"
4 1/4" x 3 1/2"
6 1/2" x 6 1/2"
7 1/2" x 7"
9 3/4" x 6"
10" x 9"
14" x 9"
240*
360*
720
1200
1560
1800
3360
7680


Round Solder Pots

Order Now

* These models use bi-metallic thermostats. All others use capillary style thermostats.
