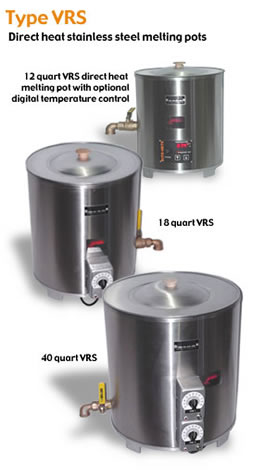

Direct Heat Wax Melters - Type VRS

FAST MELT DIRECT HEAT MELTERS
constructed with a multiple-circuit, blanket-type heating element that is uniformly applied around the crucible. The result is TOTALLY uniform heat – NO hot spots, cold spots or overheating. Temperature controls start the heating element for a quick heat up to maximize your production time. These melters are ideal for use with both wax and gel. Variable temperature ranges from 60 to 250 degrees Fahrenheit. Our VRS melters, exclusively Rite-Hete products that are manufactured on-site in our factory, offer fast melting, heavy-duty stainless steel construction, heated valve, and dual temperature controls. You can easily mix your color and scent directly into these units, or use them to melt your material. These melters, combined with our EZ Dispensing Systems, make very affordable, efficient, fast filling production systems. Order your system today!

MELTERS ARE IDEAL FOR USE WITH THE FOLLOWING MATERIALS:

  • Wax
  • Soy
  • Vegetable
  • Palm Wax
  • Soap
  • Gels
  • Materials with melting points below 250 degrees Fahrenheit
Specifications:
  • 18 gauge stainless steel crucible
  • 20 gauge stainless steel shell
  • Cover: loose; aluminum with heat-resistant knob
  • 2" fiberglass insulation
  • Multiple-circuit, blanket-type heater for uniform heat
  • Heated long-life, no-drip ball valve dispenser
  • 6' power cord
  • Electronic temperature control (60-250 degree, 40-410 degree, & 150-550 degree range options)
  • 1 Year Warranty
  • Two zone heat on 40, 60, and 80 quart models

Direct Heat Wax Melters for Candle Making
WE ACCEPT VISA, MASTERCARD, AND
AMERICAN EXPRESS CREDIT CARDS,
CASHIERS CHECKS AND MONEY ORDERS; PREPAYMENT IS REQUIRED

If you have questions, or want to place an order, please call us TOLL FREE:
1-800-359-2384

OR
Send email to info@meltingtanks.com



Options:
  • Specify 110 volt or 220 volt power for heating element
  • Digital electronic temperature control (call for price)
  • Variable temperature ranges. Specify 60-250 degrees Fahrenheit, 40-410 degrees Fahrenheit or 150-550 degrees Fahrenheit.




Dimensions - (Valve and control dimensions are excluded; prices do not include shipping.)
Capacity I.D.
(Dia. x depth)
Wattage Shipping
Weight
4 quarts = 6 lbs. wax
12 quarts = 19 lbs. wax
18 quarts = 30 lbs. wax
40 quarts = 65 lbs. wax
60 quarts = 106 lbs. wax
80 quarts = 130 lbs. wax
6 3/4 x 7"
10" x 9"
10” x14”
14” x 16”
14” x 23”
14” x 30”
480
720
840
1560
1920
2160
39 lbs.
39 lbs.
58 lbs.
92 lbs.
109 lbs.
122 lbs.
