Stainless Steel Melting Pots – Type VRS Series with Agitator

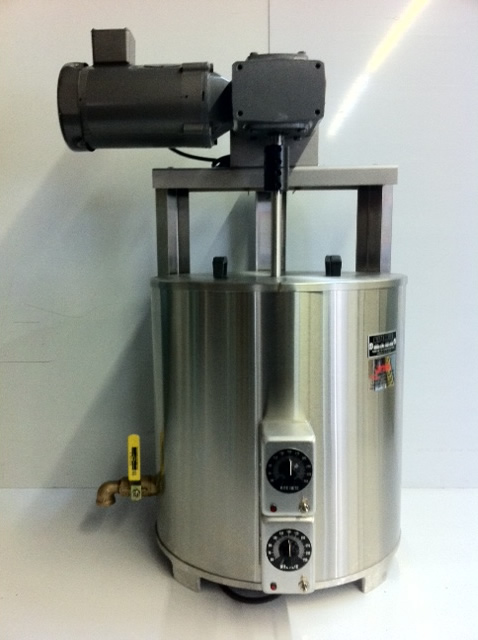

VRS With Agitator

VRS 40QT WITH AGITATOR SPECS, 50-250f degree temperature range 2024 pricing is $6492.00 + s/h.

  • Capacity: 40 quart or 10 gallons
  • Shipping weight: 200 lbs. LTL freight delivery only
  • Crucible: 14” diameter x 16” tall, 18 gauge stainless steel
  • Shell: 17.75” diameter x 29.75” tall, 14 gauge stainless steel (Excludes agitator)
  • Cover: 18 gauge stainless steel, with heat resistant handles, loose.
  • Insulation: 2” fiberglass
  • Heater: multiple circuit blanket style for uniform heat
  • Dispensing valve: .75” heated ball valve, other sizes available
  • Controls: electronic analog dual zone. Available temperature ranges are 50-250F, 40-410F, and 150-550F.
  • Agitator: 1/3 HP motor, 29 RPM, type 1 paddle style agitator
  • Electrical requirements:
    • Melter – 14 AMPS at 120 Volts, 8 AMPS at 240 Volts
    • Agitator – 6 AMPS at 120 volts, 4 AMPS at 240 Volts
  • Warranty: 1 year parts and labor.

VRS 60QT WITH AGITATOR SPECS, 50-250f degree temperature range 2024 pricing is $7480.00 + s/h.

  • Capacity: 60 quart or 15 gallons
  • Shipping weight: 220 lbs. LTL freight delivery only
  • Crucible: 14" diameter x 23” tall, 18 gauge stainless steel
  • Shell: 17.75" diameter x 26.75” tall, 14 gauge stainless steel (Excludes agitator)
  • Cover: 18 gauge stainless steel, with heat resistant handles, loose.
  • Insulation: 2" fiberglass
  • Heater: multiple circuit blanket style for uniform heat
  • Dispensing valve: .75” heated ball valve, other sizes available
  • Controls: electronic analog dual zone. Available temperature ranges are 50-250F, 40-410F, and 150-550F.
  • Agitator: 1/3 HP motor, 29 RPM, type 1 paddle style agitator
  • Electrical requirements:
    • Melter – 16 AMPS at 120 Volts, 9 AMPS at 240 Volts
    • Agitator – 6 AMPS at 120 volts, 4 AMPS at 240 Volts
  • Warranty: 1 year parts and labor.

VRS 80QT WITH AGITATOR SPECS, 50-250f degree temperature range 2023 pricing is $7995.00 + s/h.

  • Capacity: 80 quart or 20 gallons
  • Shipping weight: 230 lbs. LTL freight delivery only
  • Crucible: 14" diameter x 30" tall, 18 gauge stainless steel
  • Shell: 17.75" diameter x 33.75" tall, 14 gauge stainless steel (Excludes agitator)
  • Cover: 18 gauge stainless steel, with heat resistant handles, loose.
  • Insulation: 2” fiberglass
  • Heater: multiple circuit blanket style for uniform heat
  • Dispensing valve: .75” heated ball valve, other sizes available
  • Controls: electronic analog dual zone. Available temperature ranges are 50-250F, 40-410F, and 150-550F.
  • Agitator: 1/3 HP motor, 29 RPM, type 1 paddle style agitator
  • Electrical requirements:
    • Melter – 18 AMPS at 120 Volts, 10 AMPS at 240 Volts
    • Agitator – 6 AMPS at 120 volts, 4 AMPS at 240 Volts
  • Warranty: 1 year parts and labor.

 VIEW OR DOWNLOAD OPERATING INSTRUCTIONS
