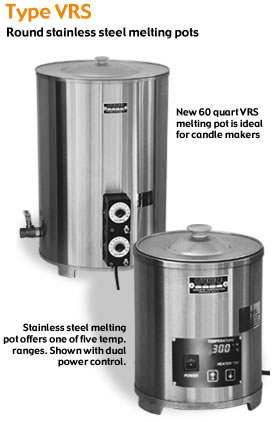

Stainless Steel Melting Pots
Specifications
18 gauge stainless steel crucible
20 gauge stainless steel shell
Cover-loose, aluminum with heat resistant knob
3” fiberglass insulation
Multiple-circuit blanket heater for uniform heat
Heated long-life, no-drip ball valve dispenser
6'' power cord
Electronic temperature control-(60° to 250° and 150° to 550° range options)
Two zone heat on 40 ands 60 quart models
Options
Specify 110V or 220V power for heating element
Digital electronic temperature control
Dual point temperature control-independent temperature for valve and for pot. Valve temperature settings are 1-10.
Selectable thermostat readout-Centigrade or Fahrenheit.
Variable temperature ranges. Specify ranges:
- 60° to 250°*, 100° to 320°
- 60° to 450°, 150° to 550°*
- 150° to 900°
(* Electronic temperature control )
Dimensions
- Valve and control dimensions are excluded
Capacity
I.D.
(Dia. x depth)
O.D.
(Dia. x depth)
Wattage
Type VRS
6 quarts
12 quarts
40 quarts
60 quarts
6 3/4” x 7 1/4”
10” x 9 1/2”
14” x 16”
14” x 23”
10 1/4” x 14”
15” x 17”
18 3/8” x 20”
18 3/8” x 27”
600
1200
1920
2160
